WideStudio Application Builder User's Guide

Add / Edit / Delete a New Property

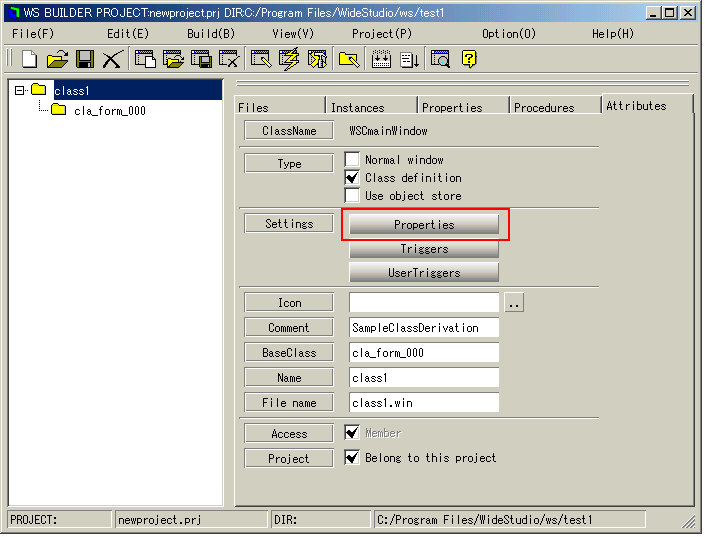

How to display the property setup dialog

You can add a new property to your class application window from the property setup dialog. Pop-up the dialog by clicking the following button.

[The property setup dialog]

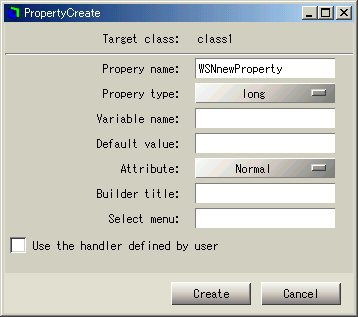

How to add a new property

Click the following icon to display the property creation dialog.

[Creating a new property]

The following items must be set.

Property name

Enter a property name beginning with "WSN...". You have to type the prefix "WSN" by yourself.
Property type

Select a data type for the variable of the property.
Variable name

Enter a variable name for the property. The property uses it to store data.
Default value

Enter a default value for the property.

Attribute

There are several attributes available.

Kind	Description
Normal	Create a normal property.
Invisible	Create a property invisible to the builder.
Delete	Delete the existing property in the base class.
Change default	Change default value of the existing property in the base class.
Change visibility	Make the existing property in the base class invisible to the builder.

Builder title

Enter a property title to be displayed in the inspector, as shown below.

[A view of the property creation dialog]

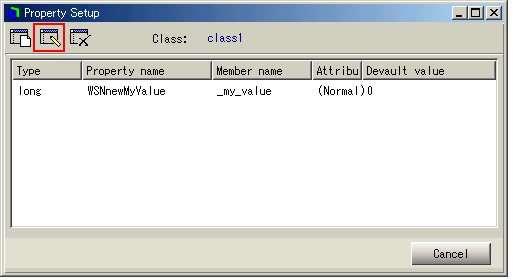

How to edit a property

Select a property and click the following icon to edit it.

[Editing of a property]

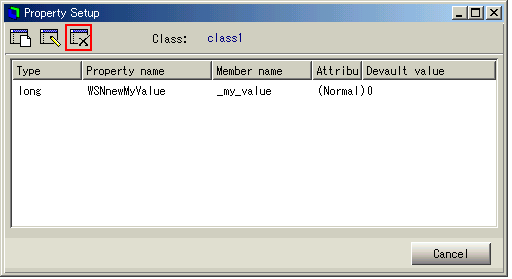

How to delete a property

Select a property and click the following icon to delete it.

[Deleting of a property]

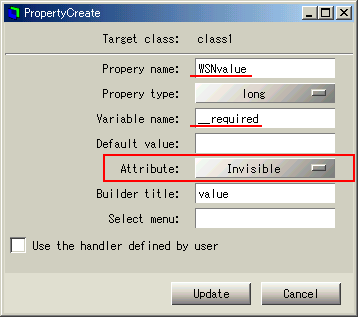

How to create a new invisible property

You can create a new property which is invisible to the application builder: the property exists but doesn't appear the property editor on the builder. Select the [Invisible] attribute in the property create / edit dialog.

[Create an invisible property]
