Table of contents


The list



Setting of the items by the method

Use addItem method to add items to the list with an string and position. If the position is omitted,add it to the last of the list. The following program is a sample adding item to the list.

#----------------------------------------------------------
#Function for the event procedure
#----------------------------------------------------------
import mpfc
import newwin000

def btnep1(object):
  # Delete all the items of the list.
  newwin000.newlist_001.delAll();
  # Add an item to the last of the list.
  newwin000.newlist_001.addItem("item1");
  newwin000.newlist_001.addItem("item2");
  newwin000.newlist_001.addItem("item3");
  newwin000.newlist_001.addItem("item4");
  # Add an item to the specified position of the list.
  newwin000.newlist_001.addItem("item0",0);  # 0 :top
  newwin000.newlist_001.addItem("item5",-1); # -1 :last

  # Update the modified list.
  newwin000.newlist_001.updateList();
  return
mpfc.WSGFfunctionRegister("btnep1",btnep1)



Setting of the items by the property

the property WSNdata can be used for setting the items of the list, if it is a comparatively little number of the items. In such case, set the property "dataSource" to WS_DATA_SOURCE_NONE, and set the items which is punctuated with comma every one item to the property "data".

#----------------------------------------------------------
#Function for the event procedure
#----------------------------------------------------------
import mpfc
import newwin000

def btnep1(object):
  # Delete all the items of the list.
  newwin000.newlist_001.delAll();

  # Set the items of the list by the property
  newwin000.newlist_001.setProperty("dataSource",mpfc.WS_DATA_SOURCE_NONE);
  newwin000.newlist_001.setProperty("data","item0\nitem1\nitem2\nitem3\nitem4");
  return
mpfc.WSGFfunctionRegister("btnep1",btnep1)

It is possible to indicate the specified ICON by icon file name as following program.
Set True to the property "useIcon" and
Set the items as following format.
If it is omitted,the value of "iconPixmap" is used for default icon.

  format:
  ICON1filename,string1ofTheItem\n ICON2filename,string2ofTheItem\n...

#----------------------------------------------------------
#Function for the event procedure
#----------------------------------------------------------
import mpfc
import newwin000

def btnep1(object):
  # Delete all the list of the listĄŁ
  newwin000.newlist_001.delAll();

  # Set the items of the list by the property
  newwin000.newlist_001.setProperty("dataSource",mpfc.WS_DATA_SOURCE_NONE);
  newwin000.newlist_001.setProperty("data",
     "$(WSDIR)/sys/pixmaps/bi16.xpm,item1\nitem2\nitem3");
  return
mpfc.WSGFfunctionRegister("btnep1",btnep1)



Setting of the items from the file directly

It is possible to set the items from the file directly. In such case at first,set WS_DATA_SOURCE_FILE to the property WSNdataSource, and set the file name to the property WSNdataSourceName as following program.

#----------------------------------------------------------
#Function for the event procedure
#----------------------------------------------------------
import mpfc
import newwin000

def btnep1(object):
  # Delete all the items of the list
  newwin000.newlist_001.delAll();

  # Set the items from file directly
  newwin000.newlist_001.setProperty("dataSource",mpfc.WS_DATA_SOURCE_FILE);
  newwin000.newlist_001.setProperty("dataSourceName","data.txt");
  return
mpfc.WSGFfunctionRegister("btnep1",btnep1)

# data.txt contains...
$(WSDIR)/sys/pixmaps/bi16.xpm,item1
item2
item3
item4
$(WSDIR)/sys/pixmaps/bi16.xpm,item5
item6
item7
item8



Setting of the items from the other instance

It is possible to set the items from the data source target property of the other instances. In such case, set WS_DATA_SOURCE_INSTANCE to the property "dataSource", and set the instance name to the property "dataSourceName". In the following example, a WSCtextField instance are specified to the property "dataSourceName" and then it sets the string data of it to the list.

#----------------------------------------------------------
#Function for the event procedure
#----------------------------------------------------------
import mpfc
import newwin000

def btnep1(object):
  # Delete all the items of the list
  newwin000.newlist_001.delAll();

  # Set the items from the other instances
  newwin000.newlist_001.setProperty("dataSource",mpfc.WS_DATA_SOURCE_INSTANCE);
  newwin000.newlist_001.setProperty("dataSourceName","newtext_000");
  return
mpfc.WSGFfunctionRegister("btnep1",btnep1)

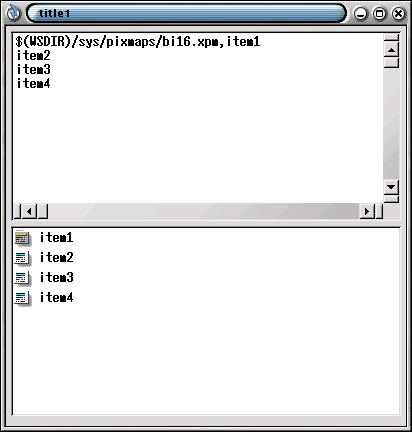

The following picture indicates the list(lower side) from the other instance of WSCtextField class( upper side).



[The list data from the other instance]


Document Release 3.80 for WideStudio ver 3.80, Jan 2005
