Sample:2 (Various kinds of classes)

Here,the following show the instances of the various kinds of WideStudio classes.

The source code is ws/samples/C/sample/sample.prj. Please load it and build it by the application builder.

this sample shows the following things.

• To display sample dialogs.




• To display value by the slider.




• To display the text input demonstrations.




• To display the combo-box demonstrations




• To select a value by option menu.




• To display a list of texts.

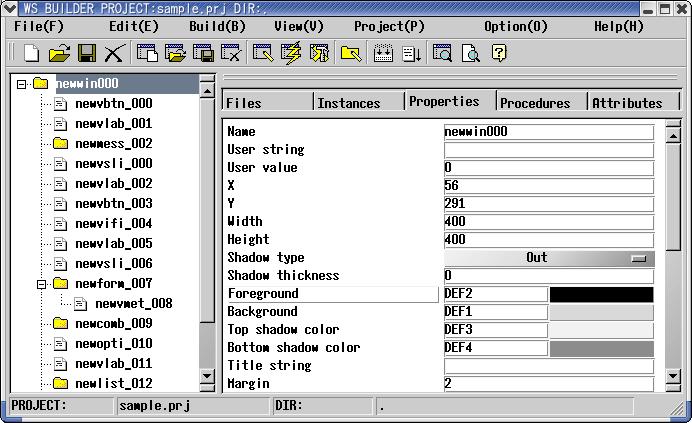

[A view of the application window]

• To display the dialogs

  The button which displays "Dialog" has a event procedure which trigger is WSEV_ACTIVATE and which function is btn1_ep(). This procedure is executed by clicking of the button,and pops up the message dialog: [newmess_002] and displays the return value from it on the label:[newvlab_001].


• To display the value of the slider

  The slider: [newvsli_000] has a event procedure which trigger is WSEV_VALUE_CH and which function is slider1_ep(). This procedure is executed by sliding of the slider,and displays the slider value on the label:[newvlab_002].


• To input strings

  The button which displays "Input text" has a event procedure which trigger is WSEV_ACTIVATE and which function is btn2_ep(). This procedure is executed by clicking of the button,and gets the string from the input field:[newvifi_004] and display it on the label:[newvlab_005].


• To display the value of the slider (2)

  The slider2: [newvsli_006] has a event procedure which trigger is WSEV_VALUE_CH and which function is slider2_ep(). This procedure is executed by sliding of the slider,and displays the slider value on the meter:[newvmet_008].


• A demonstration of the combo box

  It shows the demonstration of the combo box.


• A demonstration of the option menu

  The option menu which displays "Choose" has a event procedure which trigger is WSEV_VALUE_CH and which function is opt1_ep(). This procedure is executed by choosing of the menu,and displays the choose value on the label:[newvlab_011].


• A demonstration of the list

  The button which displays "Add" has a event procedure which trigger is WSEV_ACTIVATE and which function is btn3_ep(). This procedure is executed by clicking of the button,and adds a string to the list:[newlist_012].

  The button which displays "Clear" has a event procedure which trigger is WSEV_ACTIVATE and which function is btn4_ep(). This procedure clears the list:[newlist_012].

[A view of the application window]
